Name: 36W Waterproof Indoor Motion Sensor Driver Detachable Design
Brand: HAISEN
Price: 1 USD

Brand Name : HAISEN

Model Number : HT36V-I 1

Certification : CE

Place of Origin : China

MOQ : 100PCS

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100,000pcs per month

Delivery Time : 1-3 days for sample order, 1-2 weeks for bulk order

Packaging Details : Bubble pack, paper flat, outer carton.

Input current : 0.1-0.45A Max

Output LED power : Max. 36W

Detection area : 50%/100%

Input voltage : 120~277VAC 50/60Hz

Warranty : Normally 3 years, could be 5 years

Stand-by period : 0s/30s/5min/+∞

Contact Now

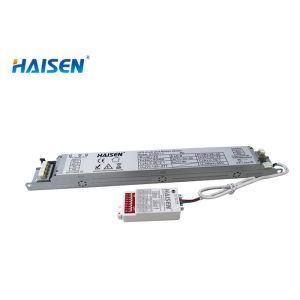

36W Waterproof Indoor Motion Sensor Driver Detachable Design

36W CE RoHS Approval Detachable Design Sensor For Tri-proof Light

Features:

36W detachable design, easy installation, workable for tri-proof light.
Detection area, hold time, stand-by period, stand-by dimming level, daylight sensor and mode can be precisely set via DIP switches.
The isolated solution can protect the power supply and lamps.
Have CE RoHS certificate.

Product Description

Output LED current	750mA/1000mA ±5%
Microwave frequency	5.8GHz±75MHz
Stand-by power	≤1W(220VAC)
Efficiency	82% (Max.)
Input voltage	120~277VAC 50/60Hz
Input current	0.1-0.45A (Max)
Input power	45W(Max)
Hold time	5s/30s/1min/5min
Microwave power	<1mW
Output LED voltage	27V~42V
Output LED power	36W(Max)
Empty load voltage	≤55V
Power factor	≥0.9
Detection angle	30°~150°
Mounting height	Max.6m(ceiling mounted) Max.3m(wall mounted)
Detection range	Max.ø14m(ceiling mounted) Max.10m(wall mounted)
Detection area	50%/100%
Daylight threshold	2Lux/10Lux/50Lux/Disable
Stand-by period	0s/10s/5min/+∞
Stand-by dimming level	10%/30%
Operating temperature	Ta:-20°C~50°C Tc:80°C
Abnormal protection	SCP:Auto recovery,OVP,OCP,OTP
EMC standard	EN55015
Safety standard	EN61347-1 EN61347-2-13 EN60598-1
IP rating	IP20
Warranty	3 years
Life time	50000h

Wiring diagram

Mechanical structure(mm)

DIP Switch Setting

Detection coverage

Demo

Application
